Introduction

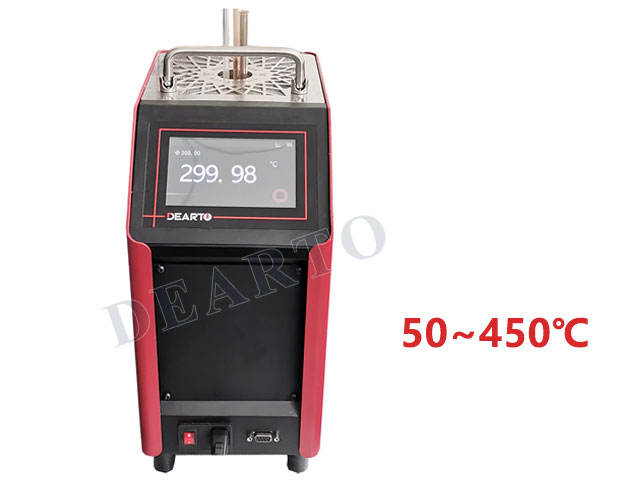

The calibration range of DTG-450G Mid-Temperature Smart Dry Block Calibrator can be from 50℃ to 450℃. The uniform temperature block in the furnace is made of high thermal conductivity aluminum alloy, which can ensure the uniform and stable internal temperature field. The dry block furnace is a very reliable and stable constant temperature source, It can be used for temperature calibration in industrial field or laboratory..
The DTG-450G dry block calibrator is designed with full consideration of the user's field application needs. In the case of lightness, portability and speed, it also ensures its stability, consistency and accuracy similar to that of the same type of laboratory equipment. The 7-inch touch LCD screen can display the set temperature, measured temperature, fluctuation, and deviation temperature at the same time, and can perform functions such as segmented temperature control adjustment and temperature measurement deviation correction; the curve display interface can display historical temperature curves to visually view temperature changes Condition.
At present, the DTG-450G dry block calibrator is at the international leading level in terms of temperature control accuracy, horizontal temperature field, vertical temperature field, stability, load performance and hysteresis effect. It can be widely used in machinery, shipbuilding, chemical industry, food, electric power, medicine and other industries.
Product Features:
● Support Chinese and English bilingual switching, support ℃, ℉ custom switching
● Fast calibration: fast heating and cooling speed, short stabilization time.
● Portable and lightweight: the device is light in weight and has a handle away from the heating area, which is convenient and easy to carry, and is very suitable for on-site instrument testing/calibration.
● Multifunctional smart touch screen: high-definition color touch screen, interactive menu mode, rich display information, easy operation, and real-time display of calibration status.
● On-demand customization service of soaking blocks: support customizing soaking blocks of different sizes and specifications according to the insertion depth and outer diameter of the tested sensor.
● Protection function: The device has a built-in overheating protection function, which is safe and stable.
● Multi-point correction: supports automatic calibration/correction of multiple temperature points; segmented PID control, supports one-key temperature rise, and fully automatic temperature control.
● Communication function: It has RS-232 communication interface, supports data transmission function, can upload to PC and save data automatically.
Technical Parameters
Mid-Temperature Smart Dry Block Calibrator | |||||
Model | DTG-450G | DTG-660AG | DTG-660BG | DTG-1200AG | DTG-1200BG |
Temp. Range (℃) | 50 to 450 | 50 to 660 | 50 to 660 | 300 to 1200 | |
Resolution (℃) | 0.01 | 0.01 | 0.01 | 0.1 | 0.1 |
Stability (℃) | ±0.2 | ±0.2 | ±0.1 | ±0.4 | ±0.2 |
Radial Uniformity (℃) | ≤0.3 | ≤0.3 | ≤0.15 | ≤1.0 | ≤0.8 |
Power (w) | 600 | 650 | 650 | 2200 | 2200 |
Depth (mm) | well depth: 170，hole depth: 155 | well depth:180，hole depth:135 | |||
Dimensions(mm) | 170(W)×285(L)×335(H） | 170(W)×285(L)×335(H) | |||
Hole sizes of standard | Φ4.5/ Φ6.5/ Φ8/ Φ10 | Φ6.5/ Φ12 | |||
The outer diameter dimensions for inserting the inspected sensor can be customized. | |||||
Power supply | 220V / 50Hz ; 110V / 60HZ | ||||
