Introduction

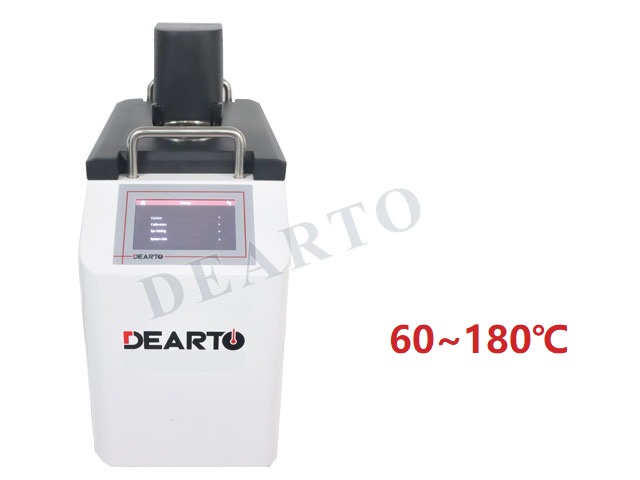

DTS-180BG Portable Smart Heating Calibration Oil Bath is a high-precision automatic control temperature verification device, which has the characteristics of good temperature stability, uniform temperature field and high temperature control accuracy. Adopt fully enclosed compressor refrigeration system and intelligent PID adjustment to realize automatic temperature control.
DTS-180BG Portable Smart Heating Calibration Oil Bath is compact in structure, light in weight, easy to carry and durable. Dts intelligent thermostatic bath is suitable for the on-site verification / calibration of various types of industrial thermal resistance, low temperature thermocouples, armored thermocouples, working glass liquid thermometers, standard mercury thermometers, bimetal thermometers, pressure thermometers and other temperature sensors.(Special index products can be customized according to requirements)
Features
1.Sealed construction: Push-type quick seal design, anti-leakage, convenient for on-site transportation.
2.Hidden handle: Hidden handle design, convenient and easy to carry.
3.Intelligent touch screen: Smart touch screen, human-computer interaction interface, multi-function display window, supports multi-touch.
4.Real-time curve display: Real-time display of temperature curve and automatic calculation of fluctuation.
5.Multi-point calibration and correction: Supports multi-point temperature calibration and correction; automatic temperature control in sections, rapid heating.
6.Safe and reliable: With overheating protection and heating limit function, safe and reliable.
7.Communication function: With RS-232 communication interface, can be connected to the upper computer.
Technical Parameters
Product name | Portable Smart Heating Calibration Oil Bath | Micro model | ||
Model | DTS-180BG | DTS-300BG | DTS-180BG-mt | DTS-300BG-mt |
Temp. range | 60℃ ~ 180℃ | 60℃ ~ 300℃ | 60℃ ~ 180℃ | 60℃ ~ 300℃ |
Bath liquid | L30-300 | |||
Control | Smart Touch Screen | |||
Temp. stability | ±0.01℃ /10min( 60℃ ); ±0.01℃/10min ( 100℃ ) ; ±0.02℃/10min ( 300℃ ) | |||
Temp. uniformity | ≤ 0.01℃ ( 60℃); ≤ 0.01℃ ( 100℃); ≤ 0.02℃ ( 200℃); ≤ 0.02℃ ( 300℃) | |||
Resolution | 0.001℃ | |||
Access opening × depth (mm) | φ80×280 | φ60×250 | ||
Volume | 3.8 L | 2.3 L | ||
Power | 1 kW | 1 kW | ||
Dimensions（L×W×H） | 220×370×425（mm） | 185×331×400（mm） | ||
Heating rate | 3 °C / min | |||
Cooling rate | 300 °C to 100 °C @ 240 min | |||
