Introduction

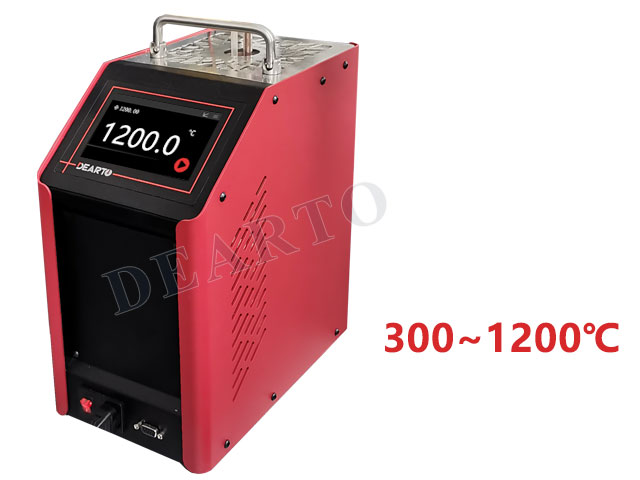

DTG-1200G High-Temperature Smart Dry Block Calibrator (300 ℃~1200 ℃), simple operation, light and portable, accurate temperature control, suitable for laboratory and industrial site temperature calibration / measurement; its calibration temperature range can be from 300 ℃ to 1200 ℃, the average temperature block uses high thermal conductivity Rate alloy material to ensure uniform and stable internal temperature field. The technology of temperature control accuracy, horizontal temperature field, vertical temperature field, stability, load performance and hysteresis are all at the domestic advanced level. Widely used in machinery, shipbuilding, chemical industry, food, electricity, medicine and other industries.
Function
● Support bilingual switching between Chinese and English, and support custom switching between ℃ and ℉.
● Multifunctional smart touch screen: high-definition color touch screen, interactive menu mode, rich display information, easy operation, and real-time display of calibration status.
● Convenient and portable: small size, light weight, strong anti-interference, more suitable for on-site calibration.
● On-demand customization service of soaking blocks: support customizing soaking blocks of different sizes and specifications according to the insertion depth and outer diameter of the tested sensor.
● Protection function: The device has a built-in overheating protection function, which is safe and stable.
● Multi-point correction: supports automatic calibration/correction of multiple temperature points; segmented PID control, supports one-key temperature rise, and fully automatic temperature control.
● Communication function: It has RS-232 communication interface, supports data transmission function, can upload to PC and save data automatically.
Technical Parameters
Model | DTG-1200AG | DTG-1200BG |
Temp. range (℃) | 300 to 1200 | |
Resolution (℃) | 0.1 | 0.1 |
Stability (℃) | ±0.4 | ±0.2 |
Radial Uniformity (℃) | ≤1.0 | ≤0.8 |
Power (W) | 2200 | 2200 |
Depth (mm) | well depth:180，hole depth:135 | |
Dimensions (mm) | 170(W)×285(L)×335(H) | |
Hole sizes of standard insert (mm) | Φ6.5/ Φ12 | |
The outer diameter dimensions for inserting the inspected sensor can be customized. | ||
Power supply | 220V / 50Hz ; 110V / 60HZ | |
