Introduction

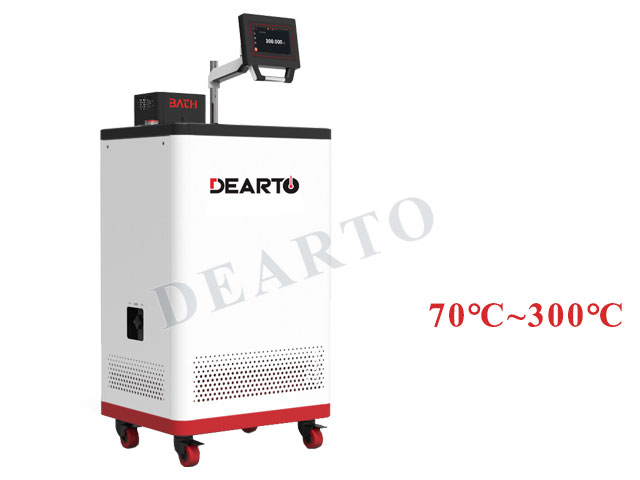

The DTS-CT300G Smart Heating Calibration Oil Bath features touchscreen control and operation with an intelligent human-machine interface, making the device more convenient, simple, and practical to use.Its structural design utilizes a dual-chamber-side-stirring technology and achieves an optimal uniform temperature field through intelligent PID regulation. This design meets the requirements for calibration, validation, and verification of various temperature sensors, including low-temperature thermocouples, industrial resistance thermometers, pressure thermometers, bimetallic thermometers, and liquid-in-gas thermometers. Special index products can be customized according to requirements.
Technical parameters
Product name | Smart precision calibration bath |
Model | DTS-CT300G |
Temperature range | 70~300℃ |
Working medium | Silicone oil |
Uniformity of horizontal temperature field | ≤0.01℃ |
Uniformity of vertical temperature field | ≤0.01℃ |
Temperature fluctuation :℃/10 min | ±0.007℃ |
Work area dimensions | φ150×480 |
Volume :(L) | 23 |
Maximum power :(KW) | 3 |
Dimensions :(mm) | 660*540*1120 |
Quality :(Kg) | 94 |
Product characteristics
1. The temperature control rate is adjustable, and the heating rate can be set freely. According to the set heating rate, the temperature rises at a constant speed to meet the verification/calibration of various temperature switches.

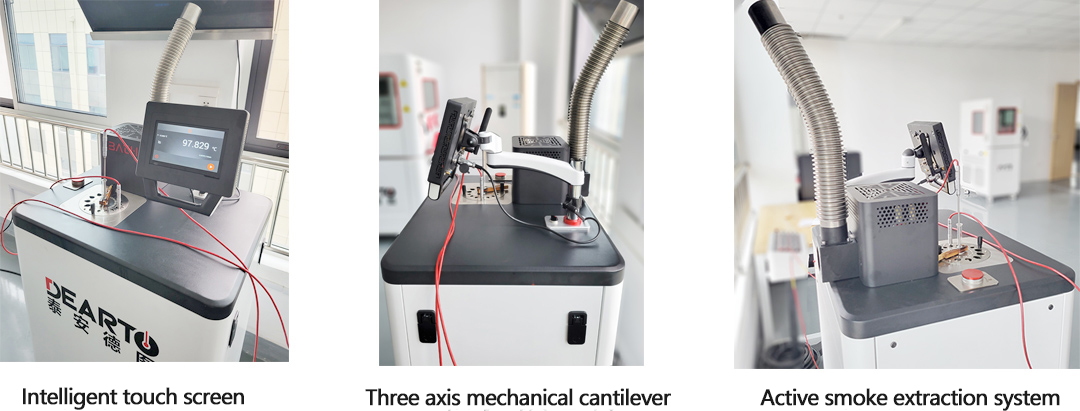

2. Has an active smoke exhaust system to create a healthy working environment. Patented structure design, flexibly applicable to a variety of smoke extraction scenarios
3. With intelligent automatic liquid replenishment and liquid level alarm functions, real-time monitoring of multiple liquid level sensors.
4. Super large capacitive screen intelligent control, intelligent human-computer interaction interface, multi-function window display, intuitive, easy to operate;

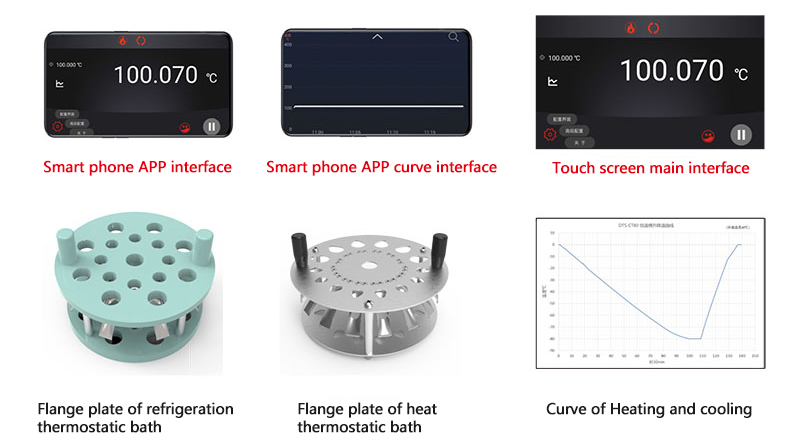

5. Real-time display of temperature control curve, multi-touch can freely pan and zoom.
6. The volatility is automatically calculated, and the time period can be customized.
7. With stability prompt function, stable state real-time display.
8. The multi-layer composite heat insulation structure design can effectively block the thermal bridge and ensure the stability and fluctuation of the temperature field.
9. Double sensor overheat protection, automatic cut off power supply when over temperature, double safety protection
10. Support temperature 12 test point calibration and correction function
11. Support USB, WIFI, WLAN, serial communication functions
12. Ergonomic design, the temperature control screen adopts three-axis mechanical cantilever installation, and the angle and length can be adjusted at will, which is convenient for operation.
13. Anti-oil design, the tabletop adopts an integrated operating table with built-in overflow circuit to prevent liquid media from contaminating the tabletop;
Product details
